Design reviews, mechanism manufacturing, testing and improving robot code

After a very busy week of finalising the prototypes and starting to manufacture parts for the mechanisms the team is ready to test some of the final assemblies.


The final intake now has only 2  rows of wheels to capture and manipulate the cargo ball into the indexer.

The first row has compliant wheels in the centre to allow for compression and 2 omni wheels at the edges to assist in moving the ball to the centre of the intake.

The second row has smaller omni wheels and 2 rubber wheel in the center.

The first new componets of the intake are cut out on the CNC router.

Onshape intake right side view
CAD components are transferred to G-code in Mastercam to run the CNC router
CNC milling of the intake arm components
CNC milling of intake box section


The indexer design was changed  with the cargo ball transport from rubber belts to compliant wheels.

This results in a more reliable and predictable speed and control of the cargo ball.

Onshape prototype design for indexer structure
Final prototype for indexer now using wheels only
Indexer prototype with wheels


The shooter and turret parts have been manufactured and assembled on the prototype indexer ready for testing.

The parts have been cut out on the team’s new CNC router that was proudly donated by Hullbot.

Onshape model of shooter right hand side
Final shooter and turret mechanical assembly

Drive Base

The prototype indexer, turret and shooter have been fitted to the drive base and connected to a temporary control system ready for testing.

Drive base with new swerve modules

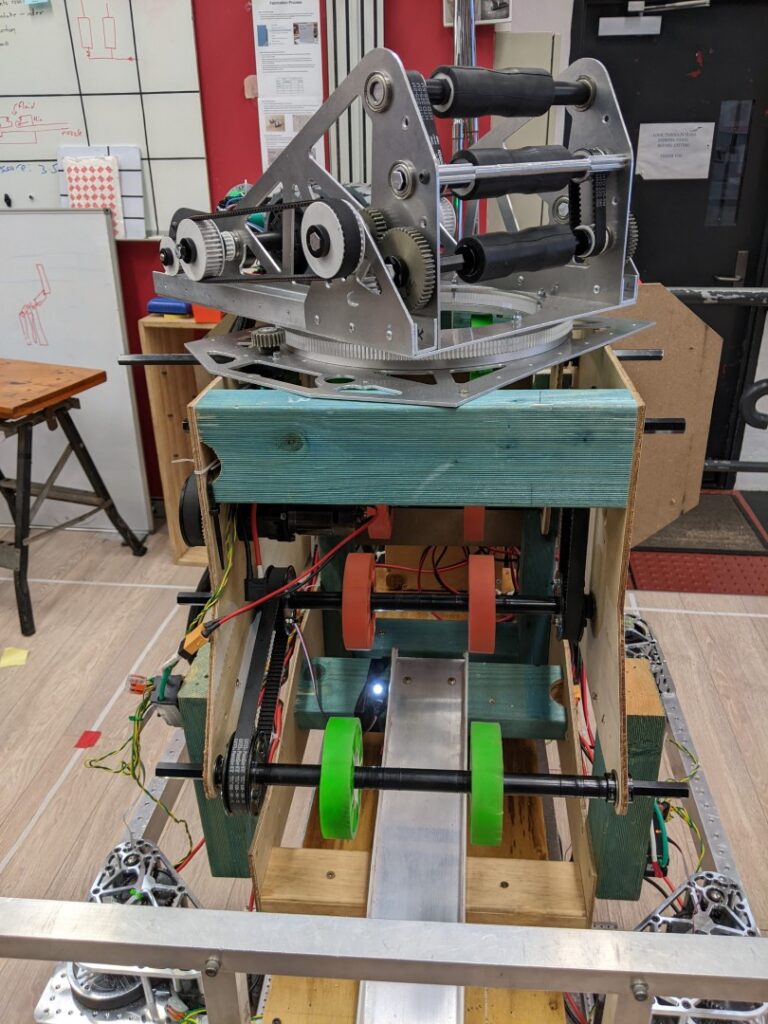

Robot with final shooter on indexer prototype and final drive base

Robot Code

New robot code was written by the software team to control the new swerve drive modules in autonomous mode.

Software team reviewing the swerve drive control system
